In Greece we use also the GGRS87/ΕΓΣΑ87 coordinate system and it's a pain in the ass to convert the coordinates to WGS84, which is the standard now days. So i built a small script using YAD and cs2cs utility, from PROJ .

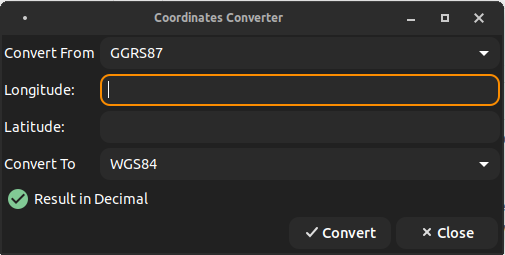

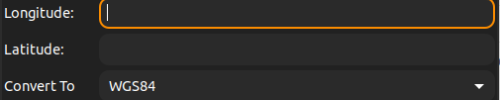

I used a GUI like YAD, because most of the time, i have to copy/paste the coordinates from other applications, like the browser. So making a terminal version of it, wouldn't be so useful. For sure, it can be made for terminal also. It's easy to use. Just paste the coordinates, chose how you want to convert them and the script will give you the conversion result.

Don't forget to install cs2cs/proj...

#!/bin/bash

export RESULT=""

function error() {
yad --center --title=" Error " --width=500 --borders=15 --fixed --window-icon="gtk-dialog-error" --text="<span font= \"14\" >\nError in inserted value [$1]. \n\nTry Again. \n</span>" --button="gtk-close:1"
}

function showres() {
yad --form \
    --center --title=" Conversion Result " --width=500 --borders=15 --fixed --window-icon="gtk-dialog-error" \
    --button="gtk-close:1" \
    --field="Result:" "$@"\

}

RESULT=$(yad --form \
    --title="Coordinates Converter" \
    --center \
    --window-icon="application-x-addon" \
    --button="Convert!gtk-ok:0" --button="gtk-close:1" \
    --width=500 \
    --field="Convert From:CB" 'GGRS87!WGS84!UTM zone 34N' \
    --field="Longitude:" ''\
    --field="Latitude:" '' \
    --field="Convert To:CB" 'WGS84!GGRS87!UTM zone 34N' \
    --field="Result in Decimal:CHK")

ret=$?

[[ $ret -eq 1 ]] && exit 0

from=$(echo $RESULT | cut -d'|' -f1)
long=$(echo $RESULT | cut -d'|' -f2)
lat=$(echo $RESULT | cut -d'|' -f3)
to=$(echo $RESULT | cut -d'|' -f4)
dec=$(echo $RESULT | cut -d'|' -f5)

if [ -z "$from" ]; then
  error "FROM field"
fi
if [ -z "$lat" ]; then
  error "LATITUDE field"
fi
if [ -z "$long" ]; then
  error "LONGITUDE field"
fi
if [ -z "$from" ]; then
  error "TO field"
fi

case $from in
  WGS84) ft=4326 ;;
  GGRS87) ft=2100 ;;
  "UTM zone 34N") ft=23034;;
esac

case $to in
  WGS84) tt=4326 ;;
  GGRS87) tt=2100 ;;
  "UTM zone 34N") tt=23034;;
esac

if [ $dec == "FALSE" ]; then
  conv=$(echo "$lat $long" | cs2cs +init=epsg:$ft +to +init=epsg:$tt)
else
  conv=$(echo "$lat $long" | cs2cs +init=epsg:$ft +to +init=epsg:$tt -d 8)
fi

showres "$conv"
